Allen & Heath QU-5

2.049,00 €*

Preise inkl. 19% MwSt. zzgl. Versandkosten

Sofort verfügbar, Lieferzeit i.d.R. 1-2 Tage

ArtNr.:	72981
EAN:	5056756900991
MPN:	QU-5/220X
Zustand:	Ausstellungsstück

Stück

Sie haben Fragen zum Produkt? Rufen Sie gerne an:
+49 8677 875 66-0

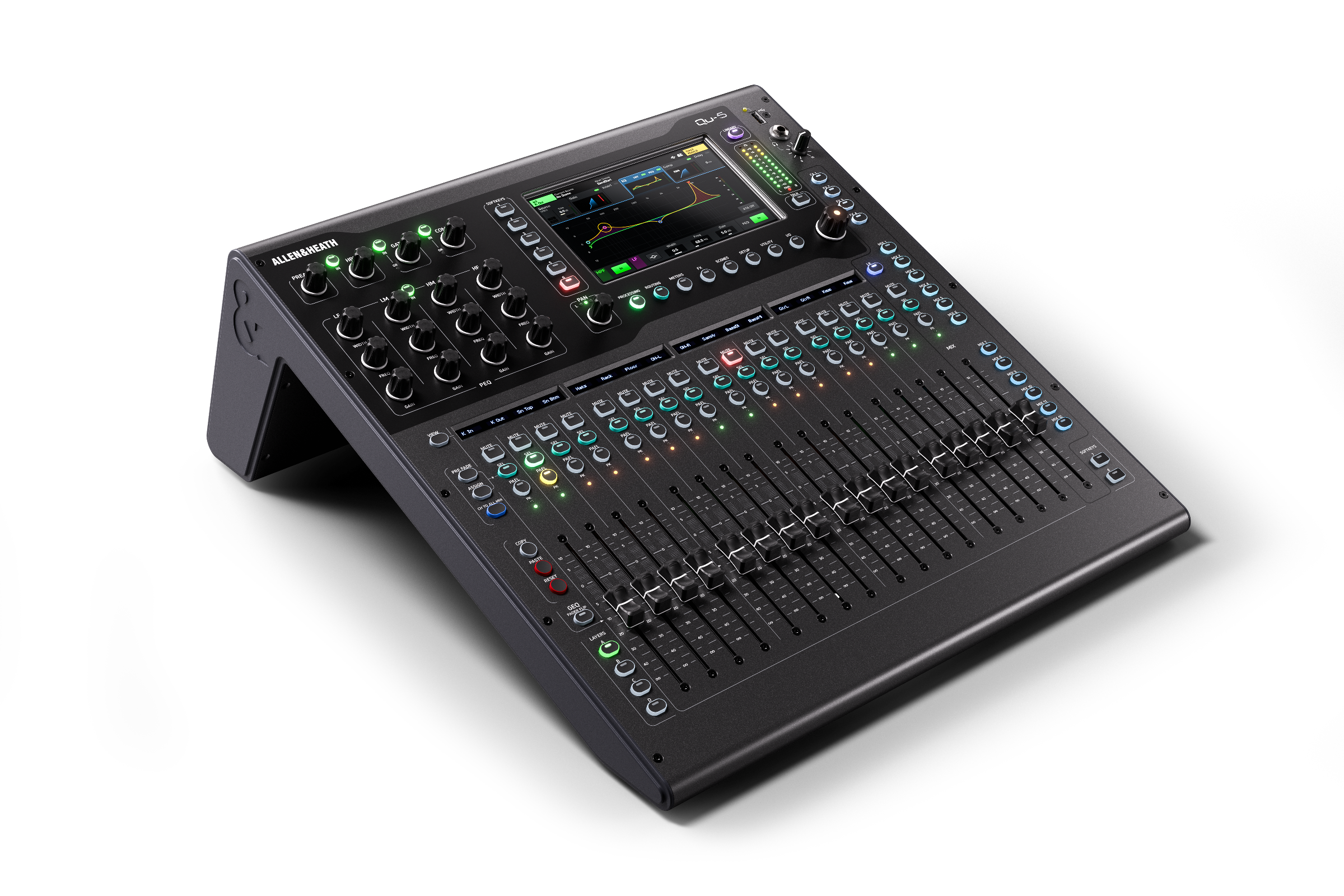

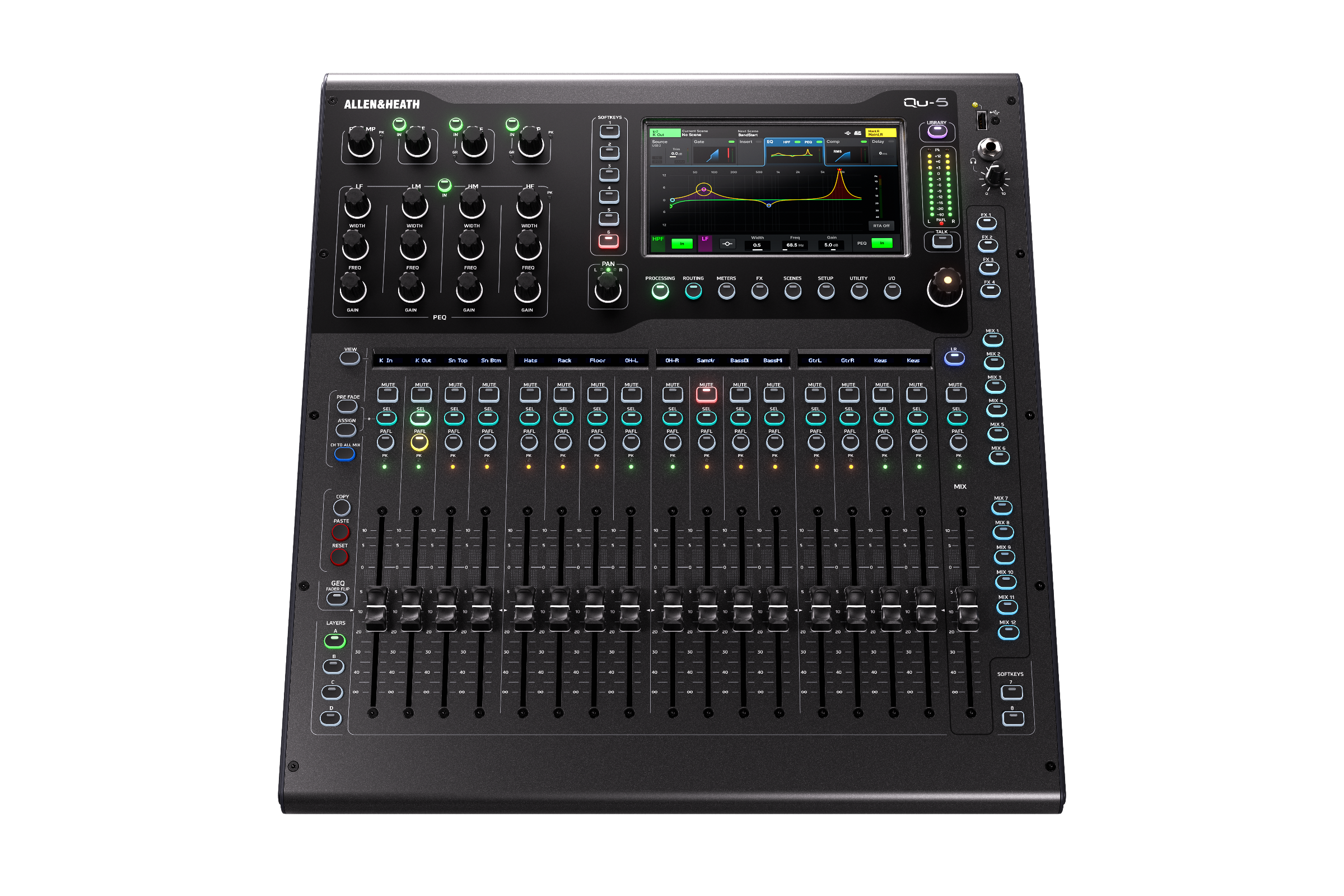

QU-5
38-Kanal Digitalmischpult

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control
Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Dante Enabled
The Qu-5D provides a 16×16 Dante interface at 96kHz or 48kHz for integration into larger systems or installs.

Hauptmerkmale:

96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready
38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
4 Mono/Linkable Matrix
Stereo Main LR Output

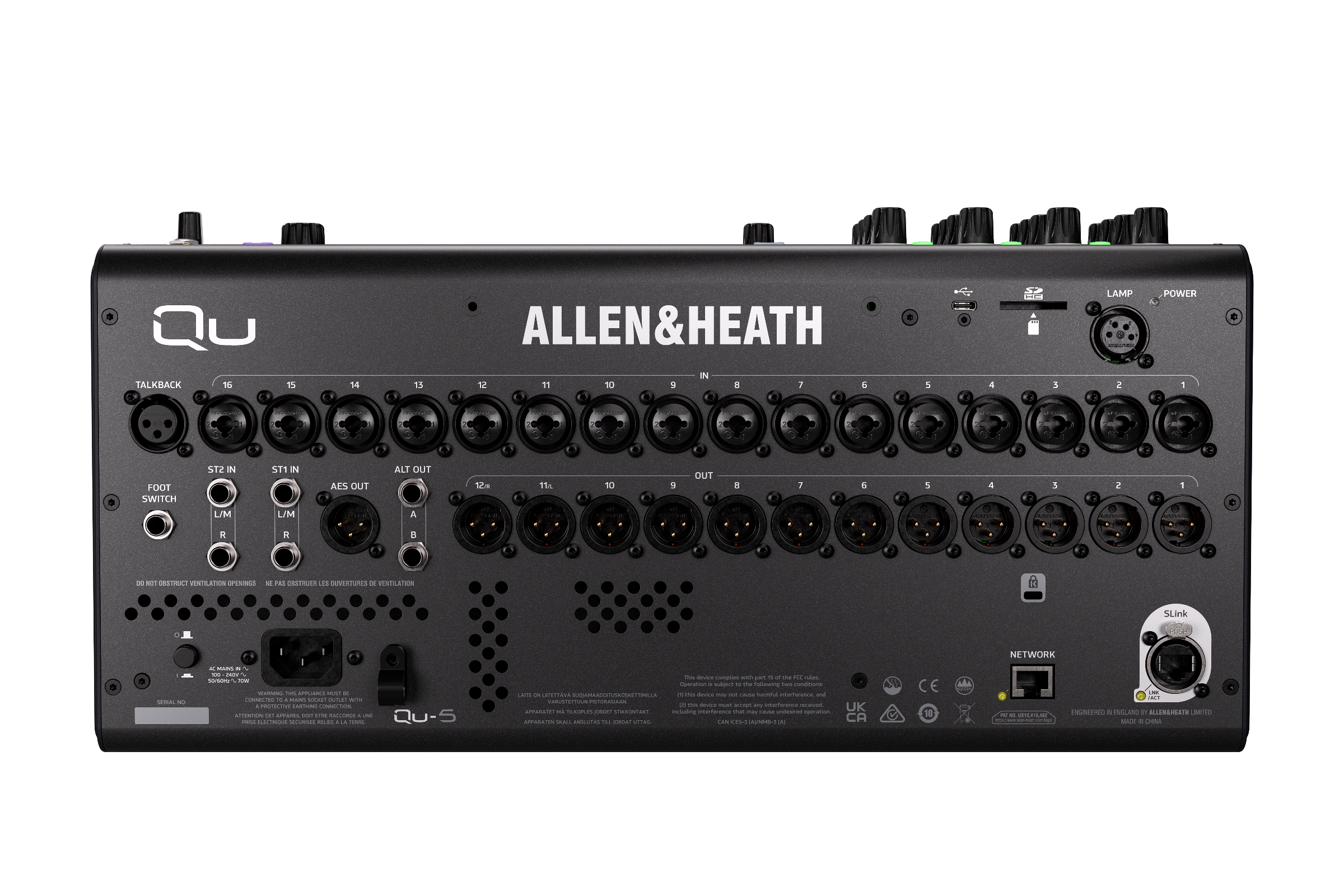

16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2x TRS)
12 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O expansion and system connections
16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
Stereo Headphone Output
7” Capacitive Touchscreen
17 100mm Motorised Faders
4 Channel Strip Layers
Remote control via free apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable single/dual Footswitch Connection
USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32×32)
SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
12V Lamp Socket
Configurable Chromatic Channel Meter LED’s

Sie haben Fragen? Wir helfen Ihnen gerne weiter. Zum Kontaktformular!

Anschlüsse:	Digital Eingang, Digitalanschluss, Klinke 6,3mm, Kopfhöreranschluss, Mikrofonanschluss, USB-Anschluss, XLR
Anzahl Eingangskanäle:	38
Maximale Auflösung in Bit:	24
Samplefrequenz in kHz:	96
